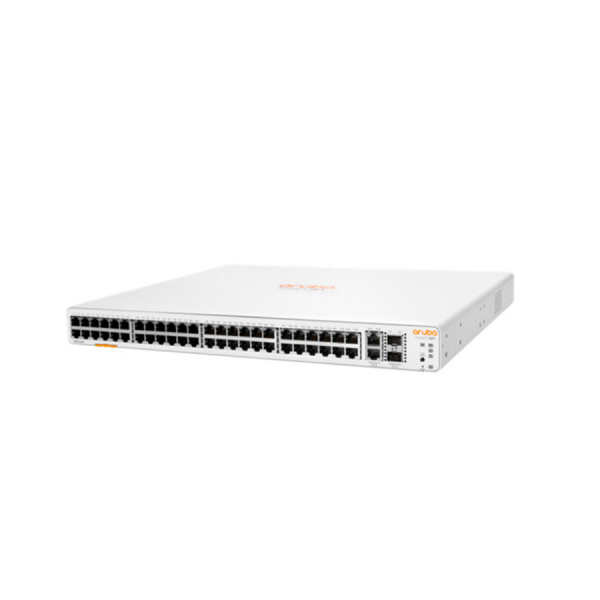

Thiết bị Switch Aruba Instant On 1960 48G 40p Class4 8p Class6 PoE 2XGT 2SFP+ 600W (JL809A)

56.250.000đ

Switch Aruba Instant On 1960 48G 40p Class4 8p Class6 PoE 2XGT 2SFP+ 600W (JL809A)
• 48 RJ-45 autosensing 10/100/1000 Mbps ports including 8 CL4 and 40 CL6 PoE ports
(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX,
IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at Class 4, IEEE 802.3bt Class 6); Duplex: 10BASE-T/100BASE TX: half or full;1000BASE-T: full only
• 2 SFP+ 10GbE ports
• 2 10GBASE-T ports

Khuyến mãi

Gọi Hotline 0977 291 551 - 0332 933 286 - 0393 666 894 để nhận nhiều ưu đãi hấp dẫn !

Mua Ngay
Đặt và nhận hàng qua hình thức ship COD

Thông số kỹ thuật Switch Aruba JL809A:

Aruba Partnumber JL809A
Description Aruba Instant On 1960 48G 40p Class4 8p Class6 PoE 2XGT 2SFP+600W Switch
Specifications
I/O ports and slots 48 RJ-45 autosensing 10/100/1000 Mbps ports including 8 CL4 and 40 CL6 PoE ports
(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX,
IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at Class 4, IEEE 802.3bt Class 6); Duplex: 10BASE-T/100BASE TX: half or full;1000BASE-T: full only
2 SFP+ 10GbE ports
2 10GBASE-T ports
Device Management Aruba Instant On Cloud;Web browser; SNMP Manager
Mounting Mounts in an EIA-standard 19 in. telco rack or equipment cabinet.2-post rack kit included
Supports table-top mounting
Supports rack-mounting Supports wall-mounting
with ports facing either up or down
Supports under-table mounting using the brackets provided
Physical Characteristics
Dimensions 402.75(d) x 442.5(w) x43.95(h) mm
Weight 10.8 lb (4.9 kg)
CPU Single-Core ARM v7 Cortex-A9 @800MHz
Performance
100 Mb Latency < 4.4 uSec
1000 Mb Latency < 2.2 uSec
10000 Mb Latency < 1.1 uSec
Throughput (Mpps) 131 Mpps
Capacity 176 Gbps
Routing Table size (# of static entries) 32 IPv4/IPv6
MAC Address table size (# of entries) 16,000 entries
Environment
Operating temperature 0-40°C, 0-10,000 ft
Operating relative humidity 15% to 95% @ 104°F (40°C) non-condensing
Nonoperating/Storage temperature -40°F to 158°F (-40°C to70°C) up to 15000 ft
Nonoperating/Storage relative humidity 15% to 90% @ 149°F (65°C) non-condensing
Altitude up to 10,000 ft (3 km)
Electrical Characteristics
Frequency 50Hz/60Hz
50Hz/60Hz 100-127VAC /200-240VAC
Current 7.9A/0.5A
Maximum power rating 100-127V: 790W
200-220V: 760W
Idle power 100-127V: 60W
200-220V: 100W
PoE power Total 600 W PoE Power (Up to 480 W of Class 6 or 600 W of Class 4 PoE)
