| General Information |
| Interface |
24x 10G 10GBase-T copper ports
4x 10G SFP+ ports (combo with 4 copper ports)
1x 1G management port |
| Manufacturer Part Number |
SX350X-24 |
| Product Series |
350X |
| Product Model |
SX350X-24 |
| Hardware |
| Capacity in Millions of Packets per Second (mpps) (64-byte packets) |
357.12 |
| Switching Capacity in Gigabits per Second (Gbps) |
480 |
| Buttons |
Reset button |
| Cabling type |
Unshielded Twisted Pair (UTP) Category 5 or better; fiber options (SMF and MMF); coaxial SFP+
|
| LEDs |
System, master, stack ID, link/speed per port |
| Flash |
256 MB |
| CPU |
800 MHz (dual-core) ARM |
| CPU memory |
512 MB |
| Packet Buffer |
3 MB |
| Environmental |
| Unit dimensions (W x H x D) |
440 x 44 x 350 mm (17.3 x 1.45 x 13.78 in) |
| Unit weight |
5.1 (11.2 lb) |
| Power |
100 - 240V 47 - 63 Hz, internal, universal |
| Power Dedicated to PoE |
N/A |
| Number of Ports That Support PoE |
N/A |
| Certification |
UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
| Operating temperature |
32° to 122°F (0° to 50°C) |
| Storage temperature |
–4° to 158°F (–20° to 70°C) |
| Operating humidity |
10% to 90%, relative, noncondensing |
| Storage humidity |
10% to 90%, relative, noncondensing |
| Acoustic noise and MTBF |
| FAN (Number) |
4 |
| Acoustic Noise |
0°C to 25°C: 43.0 dB
50°C: 57.6 dB
|
| MTBF @40C (hr) |
647,567 |
| Miscellaneous |
| Package Contents |

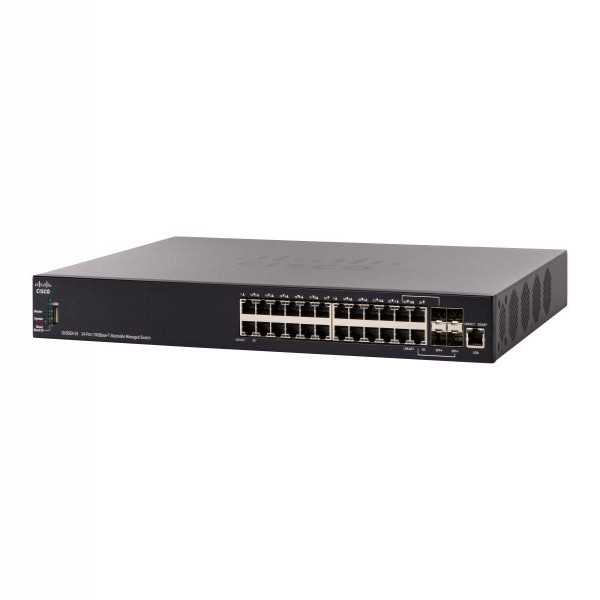

Cisco Small Business 350X Series Stackable Managed Switch
Power cord
Mounting kit included with all models
Serial cable
Quick Start Guide
|
| Other Information |
| Product Family |
350X |
