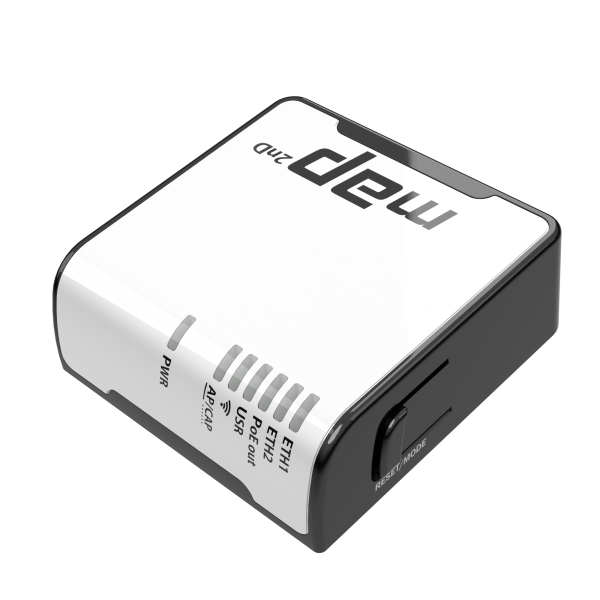

Mikrotik RouterBoard mAP RBmAP2nD micro Access Point wireless Dual-Chain

1.430.000đ

mAP with AR9531 650MHz CPU, 64MB RAM, 2xLAN, built-in 2.4Ghz 802.11bgn Dual Chain wireless with integrated antennas, microUSB, RouterOS L4, plastic case, PSU , POE-out

Khuyến mãi

Gọi Hotline 0977 291 551 - 0332 933 286 - 0393 666 894 để nhận nhiều ưu đãi hấp dẫn !

Mua Ngay
Đặt và nhận hàng qua hình thức ship COD

Thông số kỹ thuật Mikrotik RouterBoard mAP RBmAP2nD

Details
Product code RBmAP2nD
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Switch chip model QCA9531-BL3A-R
Dimensions 68x68x19mm
RouterOS license 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -20°C to 70°C
Suggested price $45.00

Wireless capabilities

Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 1.2
Wireless 2.4 GHz chip model QCA9531
Wireless 2.4 GHz generation Wi-Fi 4

Ethernet

Details
10/100 Ethernet ports 2

Peripherals

Details
Number of USB ports 1
USB Power Reset Yes
USB slot type microUSB type AB
Max USB current (A) 1

Powering

Details
MicroUSB input Voltage 5-5 V
Number of DC inputs 3 (MicroUSB, PoE-IN, DC jack)
DC jack input Voltage 8-57 V
Max power consumption 5 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 12-57 V

PoE-out

Details
PoE-out ports Ether2
PoE out Passive PoE
Max out per port output (input 18-30 V) 0.5 A
Max total out (A) 0.5 A

Certification & Approvals

Details
Certification FCC, IC

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes

Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 22 -96
11MBit/s 22 -89
6MBit/s 20 -93
54MBit/s 18 -74
MCS0 20 -93
MCS7 16 -71
