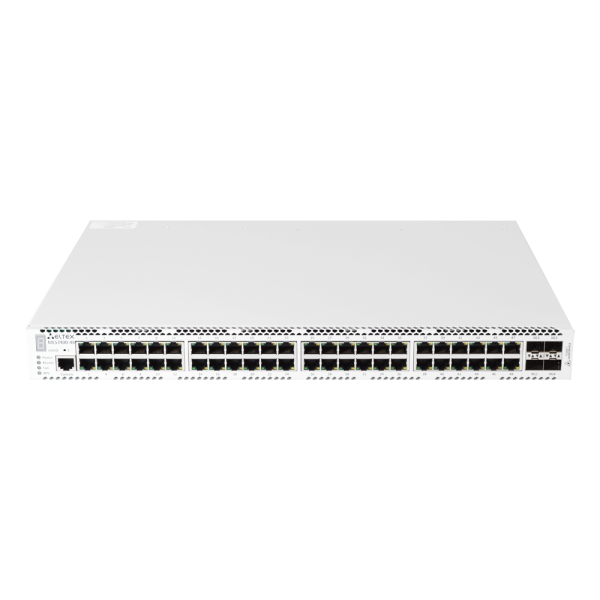

Interfaces
- 10/100/1000BASE-T (RJ-45) - 48
- 1000BASE-X (SFP)/10GBASE-R (SFP+) - 4
- Console port RS-232 (RJ-45) - 1
Performance
- Bandwidth - 176 Gbps
- Throughput for 64 bytes1 - 130.95 MPPS
- Buffer memory - 2 MB
- RAM (DDR3) - 1 GB
- ROM (SPI Flash) - 64 MB
- MAC table - 32768
- ARP table - 1000
- VLAN table - 4094
- L2 Multicast groups (IGMP Snooping) - 4094
- L3 Multicast groups (IGMP proxy) - 2048
- SQinQ rules - 2048 (ingress2), 1024 (egress)
- MAC ACL rules - 766
- IPv4/IPv6 ACL rules - 640/320
- L3 IPv4 Unicast routes - 2048
- L3 IPv6 Unicast routes - 512
- VRRP routes - 32
- L3 interfaces - 20 VLAN, up to 5 IPv4 addresses in each VLAN, up to 512 IPv6 GUA in total for all VLANs
- Link Aggregation Groups (LAG) - 24 groups, up to 8 ports in one LAG
- QoS - 8 egress queues per port
- Jumbo frames - 12288 bytes
Interface functions
- Head-of-line blocking (HOL) protection
- Auto MDI/MDIX
- Jumbo frames
- Flow control (IEEE 802.3X)
- Port Mirroring (SPAN, RSPAN)
МAC table functions
- Independent learning mode per VLAN
- MAC Multicast Support
- Configurable aging time of MAC addresses
- Static MAC Entries
- MAC change on ports
- MAC Flapping logging
VLAN functions
- Voice VLAN
- IEEE 802.1Q
- Q-in-Q
- Selective Q-in-Q
- GVRP
- MAC-based VLAN
- Protocol-based VLAN
L2 Multicast functions
- Multicast profiles
- Static Multicast groups
- IGMP Snooping v1,2,3
- IGMP Snooping fast-leave
- IGMP proxy-report
- IGMP authorization via RADIUS
- IGMP Querier
- MVR
L2 functions
- STP (Spanning Tree Protocol, IEEE 802.1d)
- RSTP (Rapid Spanning Tree Protocol, IEEE 802.1w)
- MSTP (Multiple Spanning Tree Protocol, IEEE 802.1s)
- STP Root Guard
- STP Loop Guard
- STP BPDU Guard
- BPDU Filtering
- Spanning Tree Fast Link option
- Loopback Detection (LBD)
- Port isolation
- Storm Control for different types of traffic (broadcast, multicast, unknown unicast)
- Layer 2 Protocol Tunneling (L2PT)
- ERPS (G.8032v2)
L3 Multicast functions
- IGMP proxy (RFC 4605)
- IGMP proxy fast-leave
L3 functions
- Static IPv4, IPv6 routes
- Dynamic routing protocols RIPv1/2, OSPFv2/3
- VRRP
Link Aggregation functions
- Static LAG
- Dynamic LAG (LACP)
- LAG Balancing Algorithm
Service functions
- Virtual Cable Testing (VCT)
- Optical Transceiver Diagnostics
IPv6 support
Security functions
- DHCP Snooping
- DHCP Option 82
- MAC-based authentication, Port Security, Static MAC entries
- Port-based authentication IEEE 802.1x
- Guest VLAN
- DoS attack prevention
- Traffic segmentation
- DHCP clients filtering
- BPDU attacks prevention
- PPPoE Intermediate agent
- IP Source Guard
- Dynamic ARP Inspection
- DHCPv6 Snooping
- IPv6 Source Guard
- IPv6 ND Inspection
- IPv6 RA Guard
ACL (Access Control Lists)
- L2-L3-L4 ACL (Access Control List)
- IPv6 ACL
- ACL based on:
- Switch port
- IEEE 802.1p
- VLAN ID
- EtherType
- DSCP
- Protocol type
- TCP/UDP port number
- User Defined Bytes
QoS (Quality of Service)
- Shaping
- Policing according to sr-TCM and tr-TCM
- IEEE 802.1p Class of Service
- Scheduling algorithms: Strict Priority/Weighted Round Robin (WRR)
- Setting the IEEE 802.1p priority for VLAN management
- ACL-based traffic classification
- ACL-based CoS/DSCP assignment
- DSCP to CoS/CoS to DSCP remarking
- ACL-based VLAN assignment
OAM
- IEEE 802.3ah, Ethernet OAM
- IEEE 802.3ah Unidirectional Link Detection (UDLD)
Management functions
- Download and upload of configuration file via TFTP/SFTP
- Autonatic backup of configuration file via TFTP/SFTP
- SNMP
- Command Line Interface (CLI)
- Web interface
- Syslog
- SNTP (Simple Network Time Protocol)
- Traceroute
- LLDP (IEEE 802.1ab) + LLDP MED
- Processing traffic management with two IEEE 802.1Q headers
- Authorization of entered commands using TACACS+ server
- IPv4/IPv6 ACL support for device management
- Access control — privilege levels
- Management interface blocking
- Local authentication
- IP addresses filtering for SNMP
- RADIUS, TACACS+ clients (Terminal Access Controller Access Control System)
- Telnet, SSH clinet
- Telnet, SSH server
- Macrocommands
- Logging of input commands via TACACS+
- DHCP autoconfiguration
- DHCP Relay (IРv4 support)
- DHCP Relay Option 82
- DHCP server
- Adding PPPoE Circuit-ID tag
- Flash File System
- Debugging commands
- Rate limit of traffic to CPU
- Password encryption
- Ping (IPv4/IPv6 support)
- IPv4/IPv6 static routes
- Support for multiple versions of configuration file
Monitoring functions
- Statistics of interfaces
- CPU utilization monitoring per task and per traffic type
- RAM utilization monitoring
- Temperature monitoring
- TCAM monitoring
MIB/IETF
- RFC 1065, 1066, 1155, 1156, 2578 MIB Structure
- RFC 1212 Concise MIB Definitions
- RFC 1213 MIB II
- RFC 1215 MIB Traps Convention
- RFC 1493, 4188 Bridge MIB
- RFC 1157, 2571-2576 SNMP MIB
- RFC 1901-1908, 3418, 3636, 1442, 2578 SNMPv2 MIB
- RFC 2465 IPv6 MIB
- RFC 2737 Entity MIB
- RFC 4293 IPv6 SNMP Mgmt Interface MIB
- Private MIB
- RFC 1398, 1643, 1650, 2358, 2665, 3635 Ether-like MIB
- RFC 2668 802.3 MAU MIB
- RFC 2674, 4363 802.1p MIB
- RFC 2233, 2863 IF MIB
- RFC 2618 RADIUS Authentication Client MIB
- RFC 4022 MIB для TCP
- RFC 4113 MIB для UDP
- RFC 3289 MIB для Diffserv
- RFC 2620 RADIUS Accounting Client MIB
- RFC 768 UDP
- RFC 791 IP
- RFC 792 ICMPv4
- RFC 2463, 4443 ICMPv6
- RFC 793 TCP
- RFC 2474, 3260 DS field in theIPv4 and IРv6 header
- RFC 1321, 2284, 2865, 3580, 3748 Extensible Authentication Protocol (EAP)
- RFC 2571, RFC 2572, RFC 2573, RFC 2574 SNMP
- RFC 826 ARP
- RFC 854 Telnet
- IEC 61850
Physical parameters and e nvironmental features
- Power supply
- 100–240 V AC, 50–60 Hz
- 36–72 V DC
- Maximum power consumptions - 52 W
- Heat dissipation - 52 W
- Hardware support for Dying Gasp - no
- Operating temperature - from -10 to +45 оС
- Storage temperature - from -40 to +70 оС

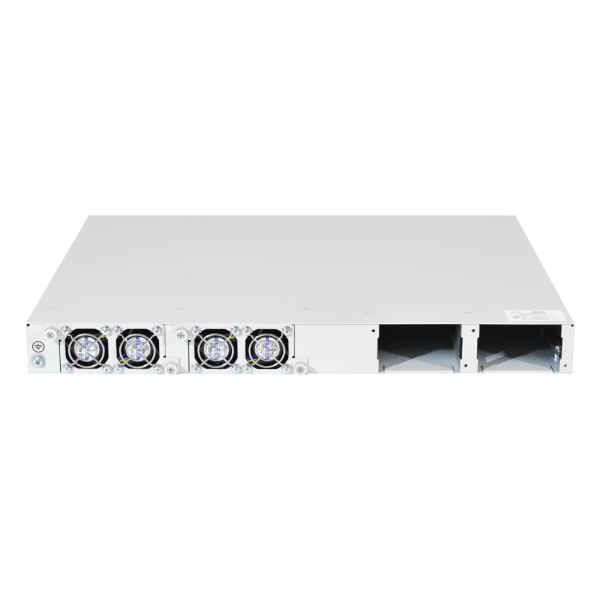

- Cooling - active, Front-to-Back, 4 fans
- Operating humidity - no more than 80 %
- Form factor - 19", 1U
- Dimensions (W × H × D) - 440 × 44 × 330 mm
- Weight 5.6 kg
